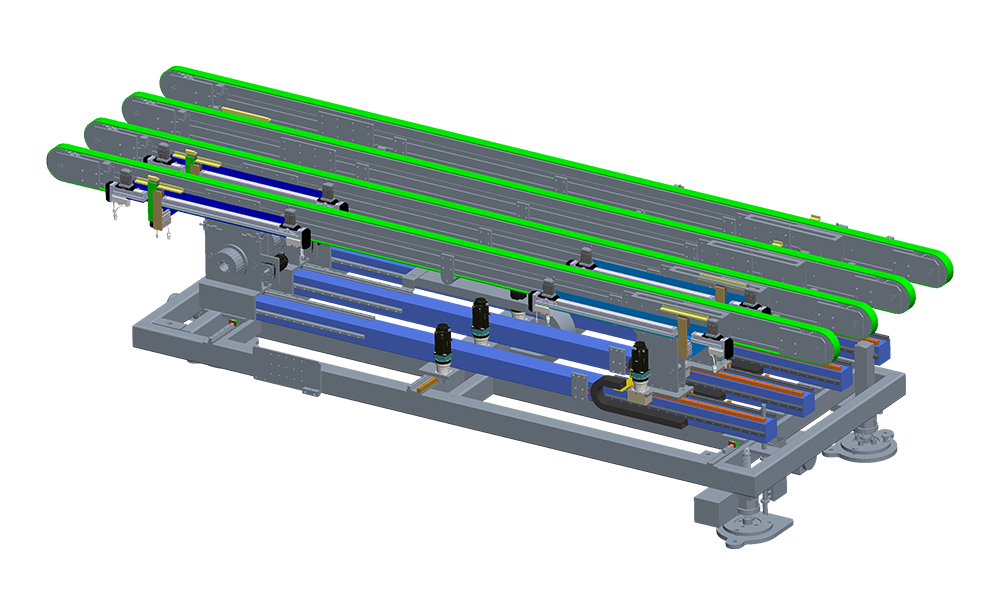

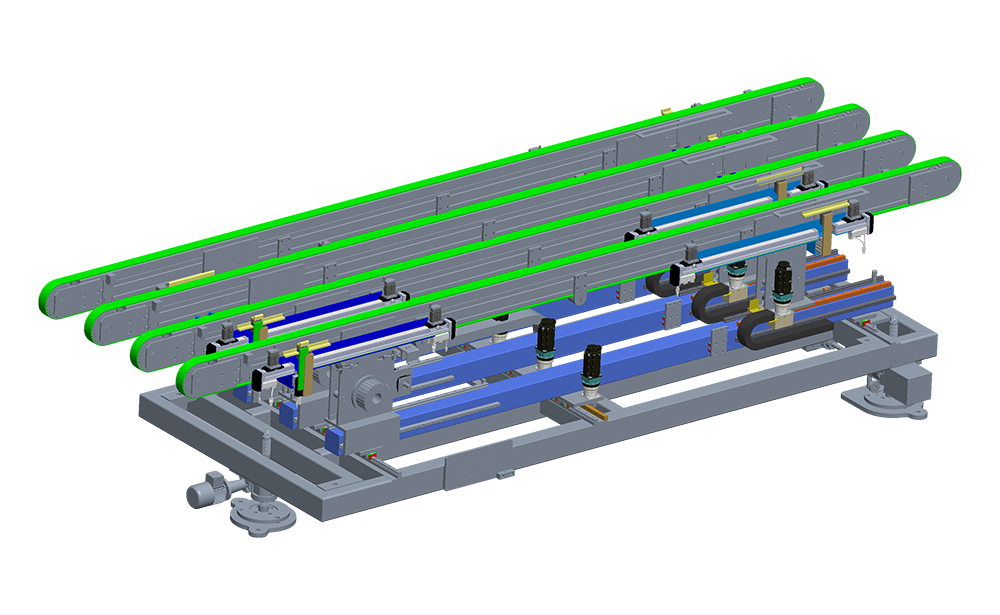

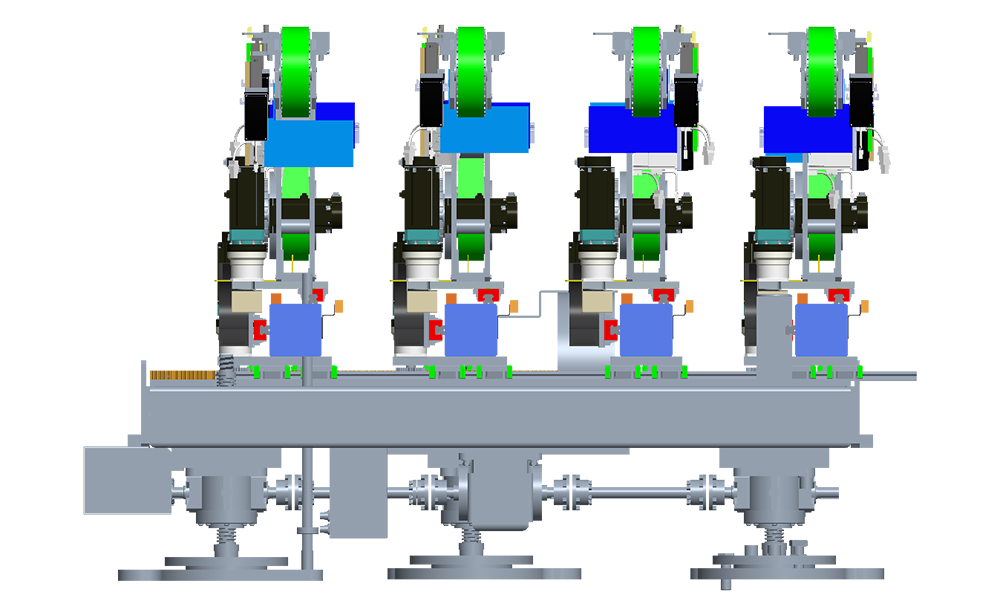

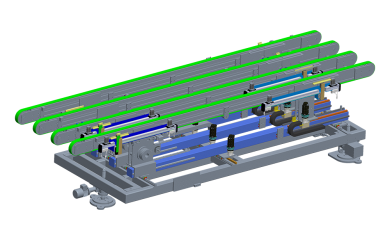

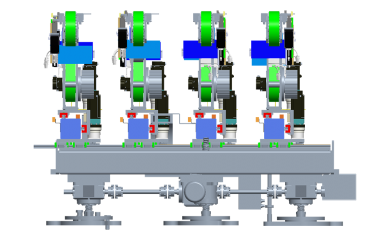

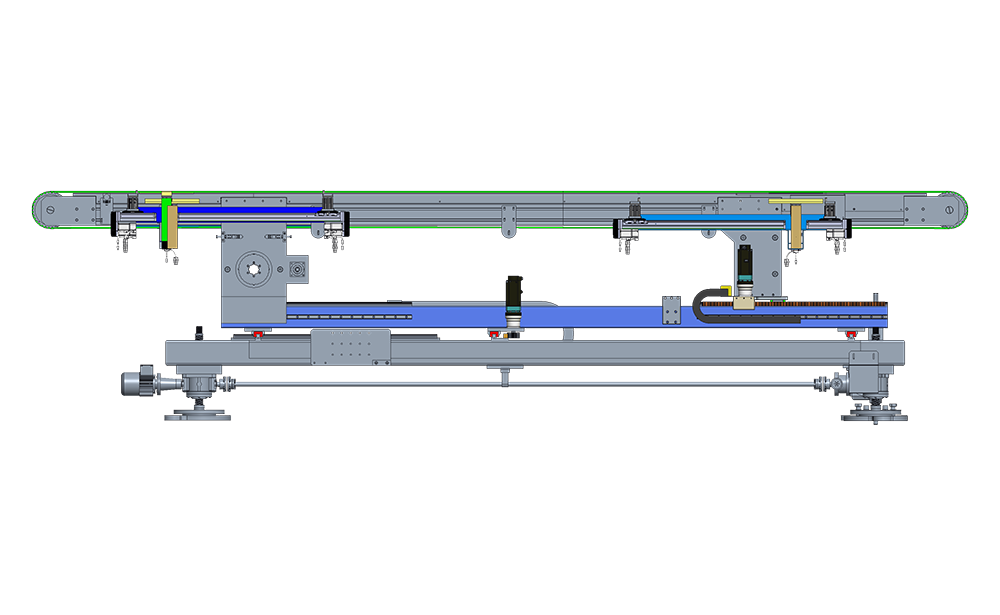

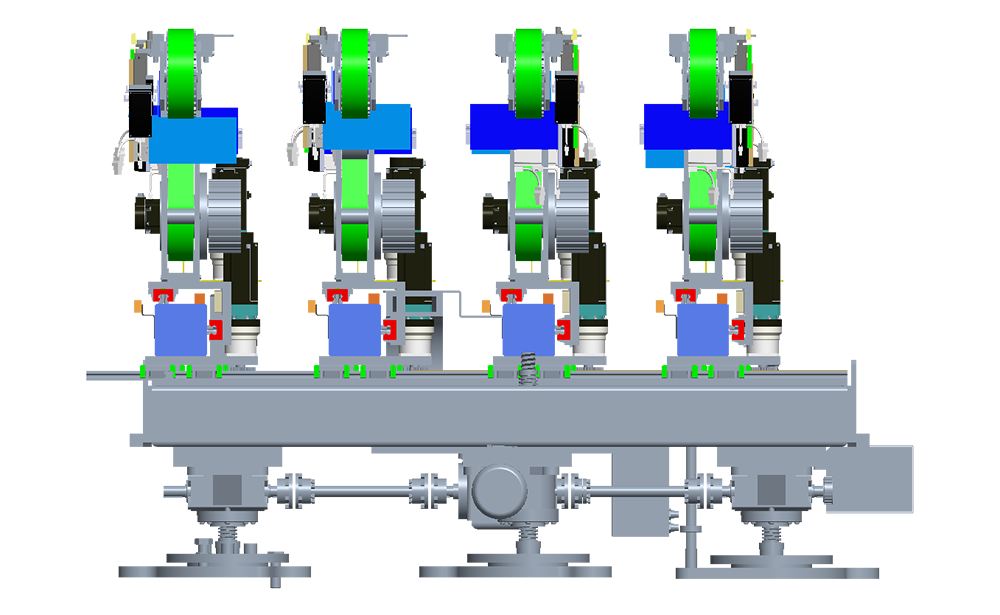

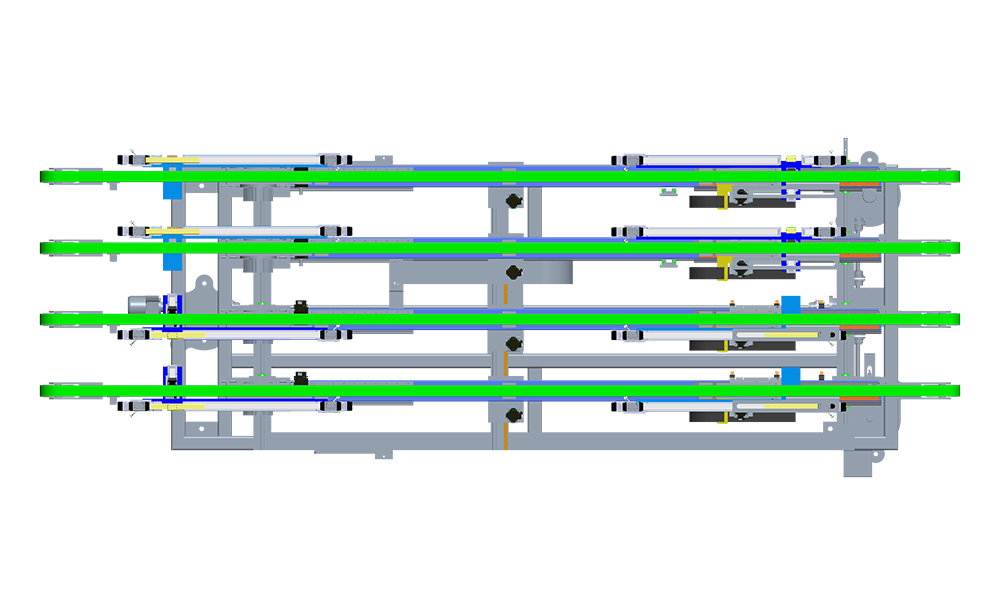

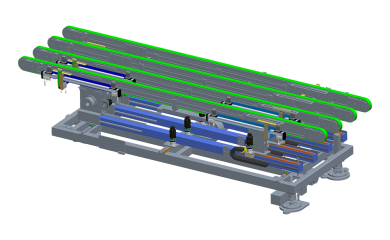

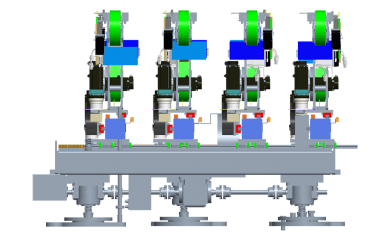

Magnet Belt
The Magnet Belt is used to transport the destacking sheet picked up by the robot or manipulator to the 0 station. It adopts variable frequency drive to realize the speed matching of the whole line. The optional X, Y, Z, and three axes can be adjusted to adapt to different shapes of sheets.
Magnet belt 2 | Magnet belt 3 | Magnet belt 4 | |
Number of magnetic modules | 2 | 3 | 4 |
Minimum size before and after conveying sheet（mm） | 150 | 350 | 450 |
Hit the center | Optional | Optional | Optional |
Maximum transmission beat（SPM） | 30 times/min | ||
Profile specifications (Aluminum)（mm） | 50x 50 | 60x 90 | 60x 90 |
Transfer material | Magnetic sheet |
